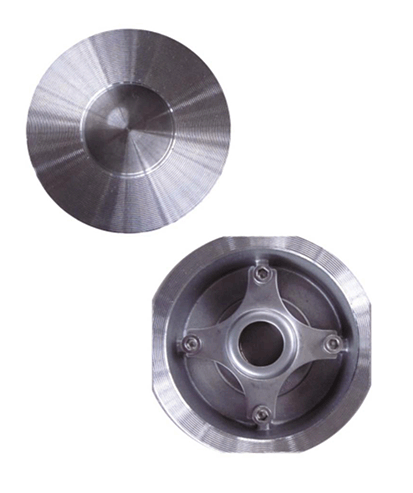

　Lift check valve
Welcome to Lift check valve

Note:

1.Design and manufacture:API 594.

2.Flange dimensions:ASME B16.1/EN 1092.

3.Test and inspection:API 598.

4.Size up to 8".

Materials list:

1 Body Stainless Steel CF8M
2 Bolt Stainless Steel 316
3 Disc Stainless Steel CF8M
4 Spring cover Stainless Steel 316
5 Spring Stainless Steel 316
DN L H
15 16 53
20 19 63
25 22 73
32 28 84
40 31.5 94
50 40 107
65 46 126
80 50 144
100 60 162
