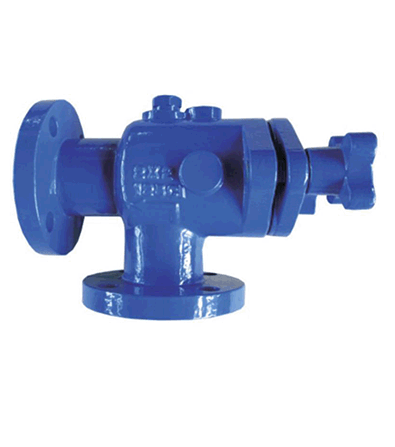

　Suction diffuser
Welcome to Suction diffuser

Note:

1.Flange dimensions:ASME B16.1 / DIN 2533 / BS 4504.

2.Test and inspection:API 598.

3.Size up to 20".

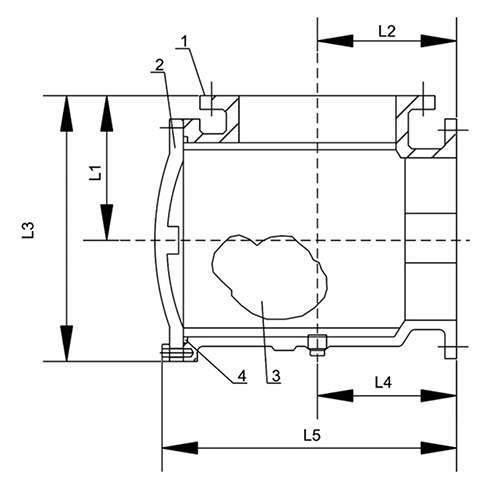

Materials list:

1 Body Cast iron / Ductile iron
2 Bonnet Cast iron / Ductile iron
3 Screen Stainless steel
4 O Ring EPDM
5 Bolt

Carbon Steel
DN L1 L2 L3 L4 L5
50×50 114 114 178 151 253
65×60 127 127 199 167 270
80×50 140 114 207 154 252
80×65 140 140 226 179 284
80×80 140 140 226 179 284
100×80 165 165 280 223 334
100×100 165 165 280 210 328
125×100 191 191 332 254 394
125×125 191 191 349 254 394
150×100 203 165 310 223 334
150×125 203 203 367 272 423
150×150 203 203 367 272 423
