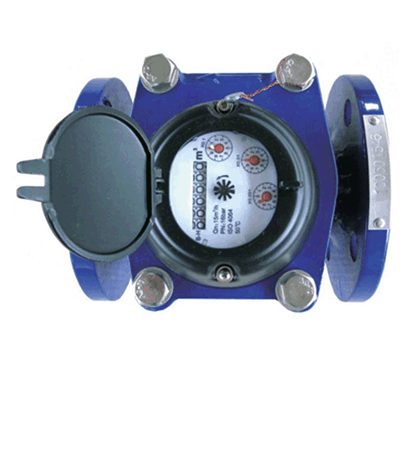

　Water meter
Welcome to Water meter

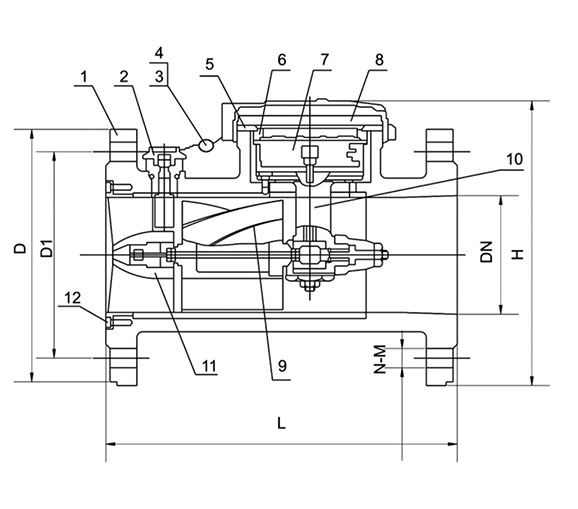

Materials list:
1 Body
2 Adjuster
3 Brass wire
4 Lead seal
5 Gasket
6 Bushing
7 Indicator
8 Glass
9 Wing wheel
10 Yoke
11 Rectifier
12 Bolts
DN L H D D1 N-M
80 225 232 200 160 8-M16
150 250 242 220 180 8-M16
200 300 298 285 240 8-M20
250 350 350 340 295 8-M20
