　Basket strainer
Welcome to Basket strainer

Note:

1.Flange dimensions:ASME B16.1 / DIN 2533 / BS 4504.

2.Face to face dimensions:ASME B16.10 / DIN 3210 F1 / BS 2080.

3.Test and inspection:API 598.

4.Size up to 20".

Materials list:

1 Body Cast iron / Ductile iron
2 Cover Cast iron / Ductile iron
3 Screen Stainless steel
4 Gasket Graphite
5 Plug

Cast iron / Ductile iron

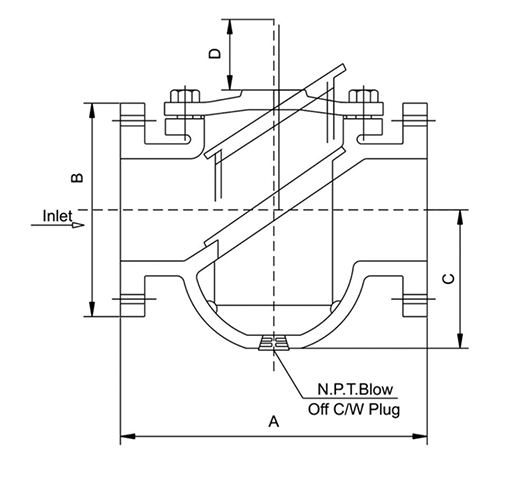

Size A B C D N.P.T.
2" 8 1/2 8 3/8 5 5 3/8 1/2
2 1/2" 8 3/4 9 5/8 8 5/16 6 5/16 3/4
3" 9 7/8 11 1/4 6 1/2 8 1/2 3/4
4" 11 1/2 13 1/2 8 9 5/16 1
5" 13 1/8 14 5/8 8 10 1/4 1
6" 14 7/8 15 5/8 8 5/8 11 1/8 1
8" 18 11/16 21 11 3/4 15 9/16 1 1/2
10" 20 1/8 24 1/2 13 3/4 18 1 1/2
12" 26 1/4 29 3/4 16 3/8 23 1/4 2
14" 30 1/4 36 3/8 23 1/4 28 1/8 2
16" 33 1/8 38 3/4 23 1/4 30 2
18" 38 3/8 38 19 35 2
20" 41 1/2 43 5/8 23 1/2 37 2
