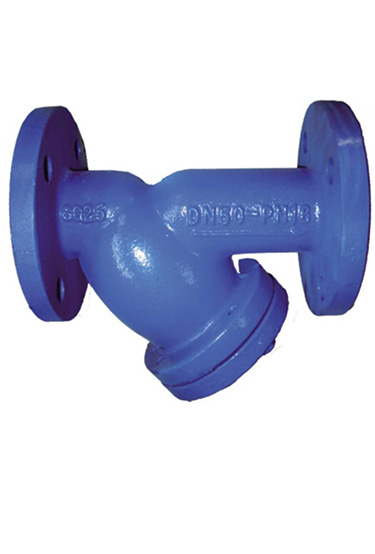

　Y strainer
Welcome to Y strainer

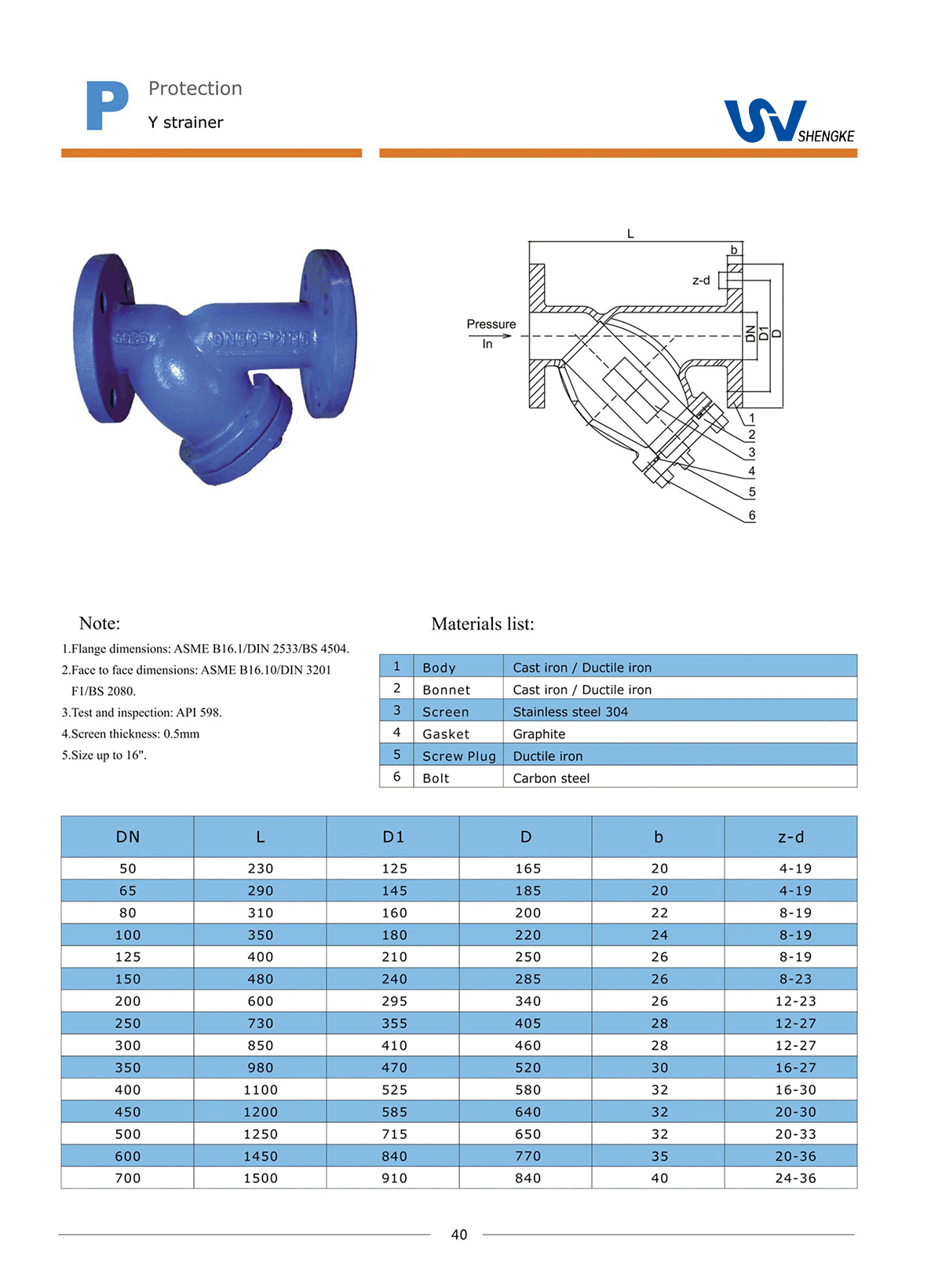

Note:

1.Flange dimensions:ASME B16.1 / DIN 2533 / BS 4504.

2.Face to face dimensions:ASME B16.10 / DIN 3210 F1 / BS 2080.

3.Test and inspection:API 598.

4.Screen thickness:0.5mm.

5.Size up to 16".

Materials list:

1 Body Cast iron / Ductile iron
2 Bonnet Cast iron / Ductile iron
3 Screen Stainless steel 304
4 Gasket Graphite
5 Screw Plug

Ductile iron
6 Bolt Garbon steel

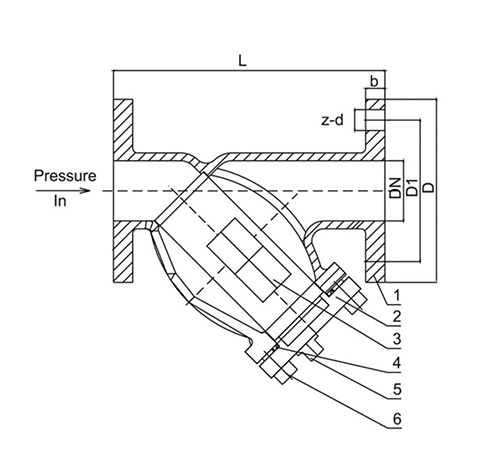

DN L D1 D b z-d
50 230 125 165 20 4-19
65 290 145 185 20 4-19
80 310 160 200 22 8-19
100 350 180 220 24 8-19
125 400 210 250 26 8-19
150 480 240 285 26 8-23
200 600 295 340 26 12-23
250 730 335 405 28 12-27
300 850 410 460 28 12-27
350 980 470 520 30 16-27
400 1100 525 580 32 16-30
450 1200 585 640 32 20-30
500 1250 715 65 32 20-33
600 1450 840 770 35 20-36
700 1500 910 840 40 24-36
