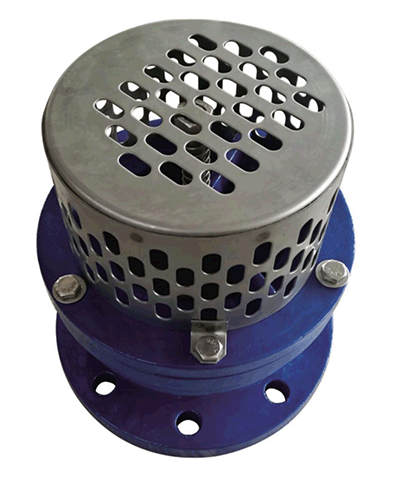

　Foot valve
Welcome to Foot valve

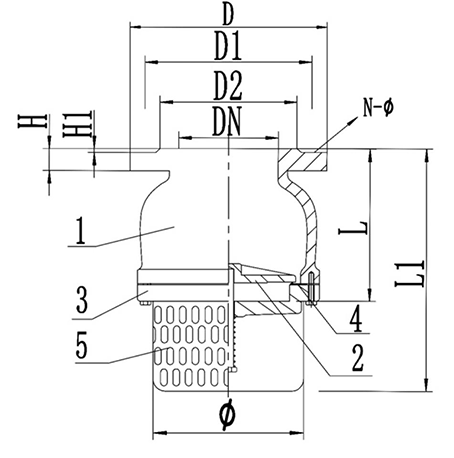

Materials list:

1 Body GG25 / GGG50
2 Disc GG25 / GGG50
3 Bonnet GG25 / GGG50
4 Seat EPDM / NBR
5 Sceen SS304 / SS316
DN D D1 N-Φ D2 L H H1 L1 Φ
DM80 200 160 8-18 136 120 22 3 210 140
DN100 220 180 8-18 156 135 24 3 230 160
DN125 250 210 8-18 184 170 26 3 295 185
DN150 285 240 8-23 211 195 26 3 340 220
DN200 340 295 12-23 266 230 30 3 435 280
DN250 405 355 12-27 318 235 32 3 480 325
DN300 460 410 12-27 378 350 32 3 705 480
