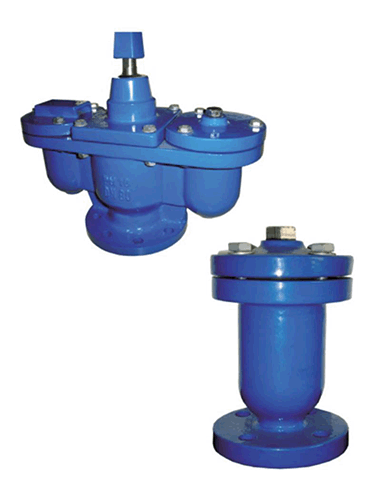

 Automatic air valve
Welcome to Automatic air valve

Note:

1.Flange dimensions:ASME B16.1 / DIN 2533 / BS 4504.

2.Test and inspection:API 598.

3.Size up to 8".

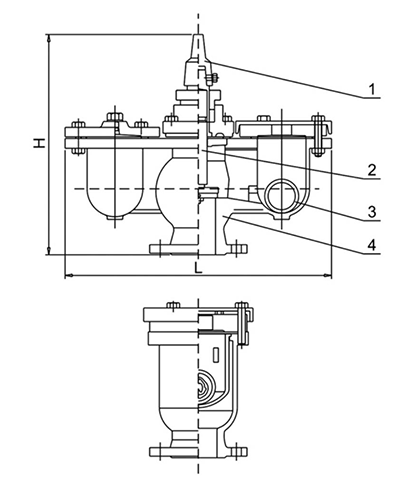

Materials list:

1 Cover Cast iron / Ductile iron
2 Spindle Stainless Steel / Brass
3 Float ball Cast iron + NBR
4 Bady Cast iron / Ductile iron
DN 50 80 100 150 200
H 387 387 490 597 679
L 468 468 555 742 850
