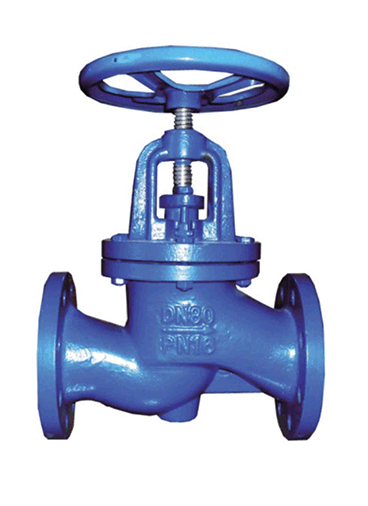

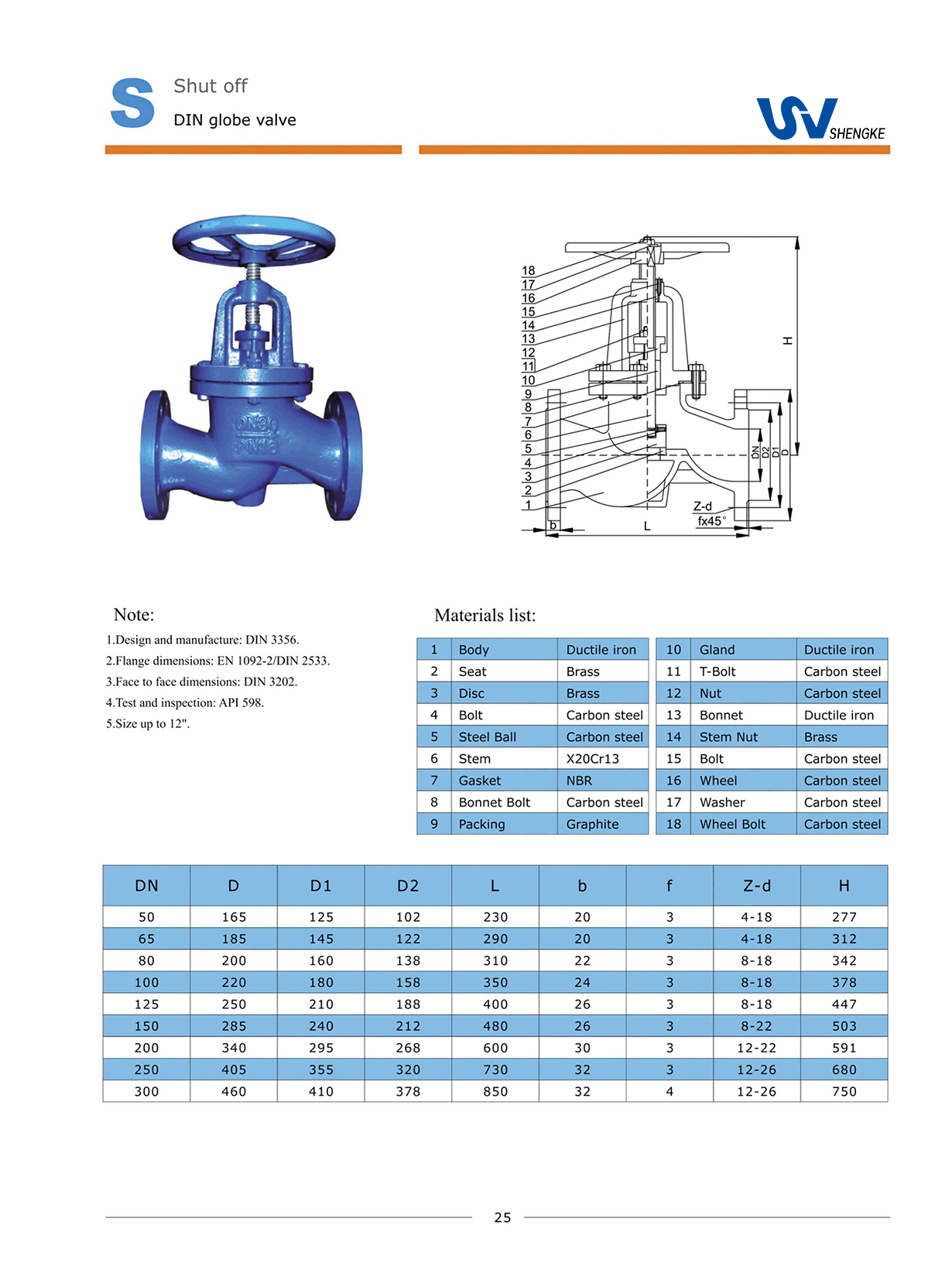

　DIN globe valve
Welcome to DIN globe valve

Note:

1.Design and manufacture:DIN 3356.

2.Flange dimensions:EN 1092-2/DIN 2533.

3.Face to face dimensions:DIN 3202.

4.Test and inspection:API 598.

5.Size up to 12".

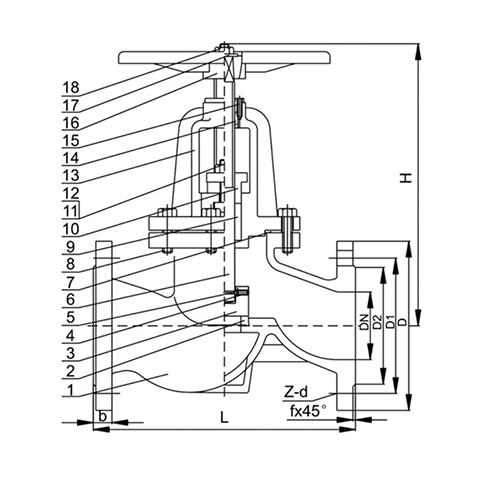

Materials list:
1 Body Ductile iron
2 Seat Brass
3 Disc Brass
4 Bolt Carbon Steel
5 Steel Ball Carbon Steel
6 Stem X20Cr13
7 Gasket NBR
8 Bonnet Bolt Carbon Steel
9 Packing Graphite
10 Gland Ductile iron
11 T-Bolt Carbon Steel
12 Nut Carbon Steel
13 Bonnet Ductile iron
14 Stem Nut Brass
15 Bolt Carbon Steel
16 Wheel Carbon Steel
17 Washer Carbon Steel
18 Wheel Bolt Carbon Steel
DN D D1 D2 L b f Z-d H
50 165 125 102 230 20 3 4-18 277
65 185 145 122 290 20 3 4-18 312
80 200 160 138 310 22 3 8-18 342
100 220 180 158 350 24 3 8-18 378
125 250 210 188 400 26 3 8-18 447
150 285 240 212 480 26 3 8-22 503
200 340 295 268 600 30 3 12-22 591
250 405 355 320 730 32 3 12-26 680
300 460 410 378 850 32 4 12-26 750
